Wiring a Yale Keyless Connected Smart Lock to the mains

For various reasons, not least because I wanted to play with it, we have a Yale Keyless Connected Smart Door Lock with a Z-Wave module (we have the v1 module which works fine). This lock has a couple of key features that we liked:

a hand places a round tag next to a lock which is lighting up
  • You can grant or revoke access using RFID tags or cards, or by entering a 6-8 digit code on the keypad.
  • With the Z-Wave module (and a compatible Z-Wave controller), you can programatically add and remove codes so that you can enable codes at specific time or dates. For us, this meant we could create a code for the cleaner, but if they turned up at 2am on a Saturday, the door wouldn’t open for them.

It’s connected to our Samsung SmartThings hub, and i run the RBoy Apps custom device type and smart app to enable the scheduled key rotation etc. Overall, we’ve been fairly happy with it, but the thing really does eat up batteries, and I started to feel guilty about putting between 4 or 8 AA batteries in the bin each month. Of course I also got annoyed at constantly having to buy them and change them, so I decided to try rechargeables.

We bought some Panasonic Eneloop Pro batteries. I’d read a very interesting piece of research showing how high performance NiMH batteries actually outperform alkaline batteries – delivering a stable ~1.2v for far longer. As it turns out, this is a problem.

With a regular battery, as the charge drops, the device detects this and fires off an alert reminding you to change them. As the research showed, however, NiMH batteries provide a fairly constant 1.2v until the “power” in the batteries is pretty much depleted, and then they just die. This isn’t a problem for a radio controlled car. But of course if the batteries go flat on your front door lock, you can’t get in to your house as there’s no key override on it, and with no alerts, we wouldn’t know to change them. Although you can power the lock from the outside in an emergency using a 9v battery, after a particularly embarrassing situation where I discovered that the 9v battery I had stored in the glove box had expired 2 years ago, I decided to figure out how to wire the lock up to a permanent power supply. The main challenge here of course is that I would like to be able to unlock my house even when the power is out. After a bit of thinking, i decided that I probably needed a battery in there somewhere too.

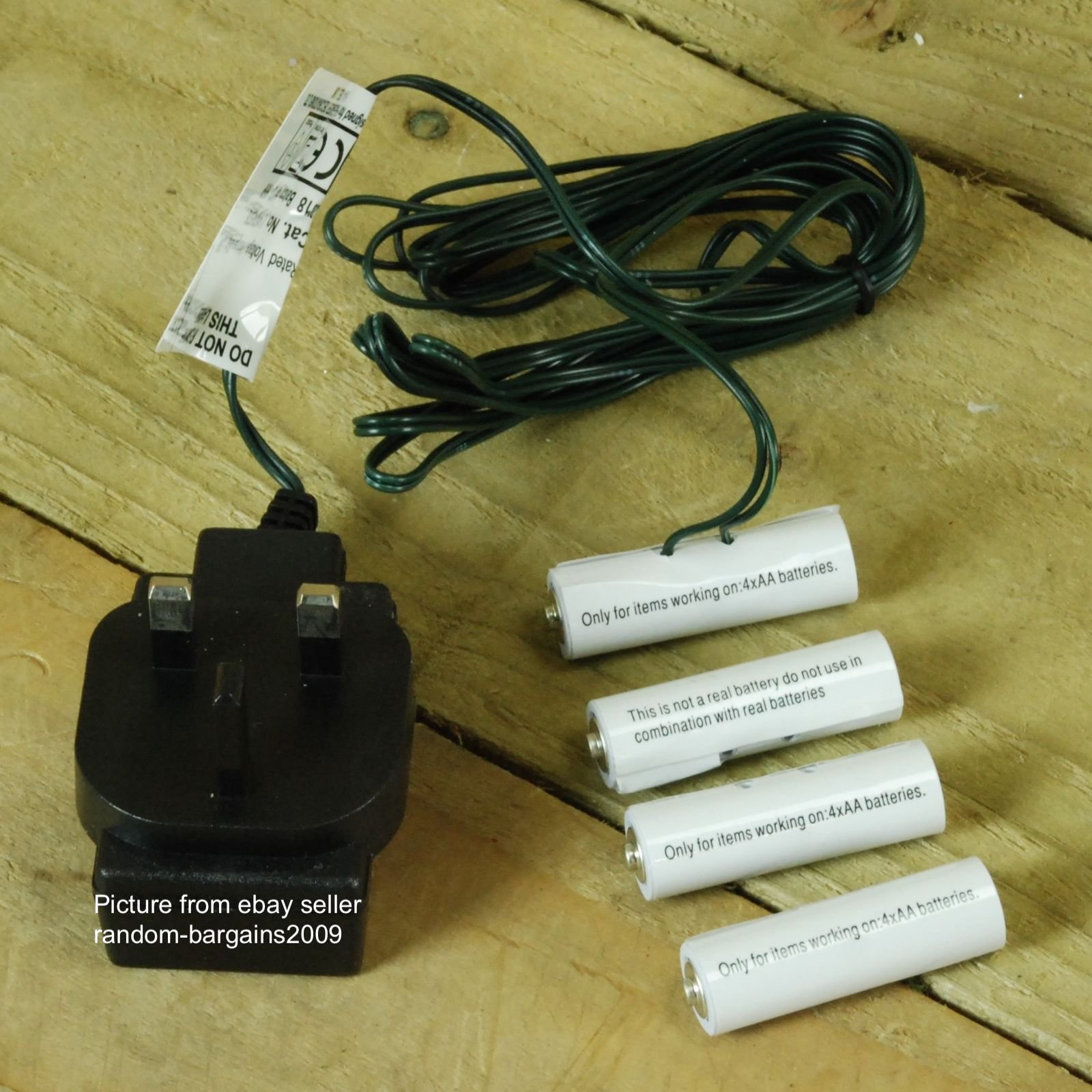

Picture from ebay seller random-bargains2009

The first challenge is working out how to wire up the device. Ideally, didn’t want to be soldering connectors on. After a bit of research, I found a “4 X 6V AA MONEY SAVING BATTERY REPLACEMENT PLUG IN ADAPTER” on ebay (the item i bought is from “random-bargains2009” but there were three or four different ones from other sellers). This is basically an AA battery with a wire coming out of it connected to a mains adaptor, and 3 “dummy” battery blanks. I cut off the AC adaptor, and soldered on a USB A plug, and connected it to a Belkin USB battery pack, then plugged that in to a charger to keep it constantly topped up and … nothing. It turns out that Belkin battery packs can’t provide power and be charged at the same time. Doh!

I tried another battery pack, and all was fine until my wife tried to come in about 5 minutes later. Apparently the “smart” charge controller built in to the battery didn’t detect sufficient current, and so switched off the battery pack. Brilliant.

After a bit of research, I was able to find a 3,000mAh battery pack with a USB plug (from Amazon) that was designed to provide backup power for 12v CCTV cameras. Made by Chinese company TalentCell, it claims CE compliance for both the batteries and the charger. Mine arrived from Germany with an EU plug, but I already had some fused, screw fixed adaptor plugs, so not a problem.

Finally, the I ran the cable around the frame of the glass in the door to try and keep it discrete, and I’m now confident that we won’t ever be locked out again.
